Adapter frame for roof hoods on the Sprinter (from '06) and Crafter (from '06 - '16)

This adapter frame was specially designed and developed for the Mercedes Sprinter (from model year 2006) and the VW Crafter (model year 2006 to 2016).

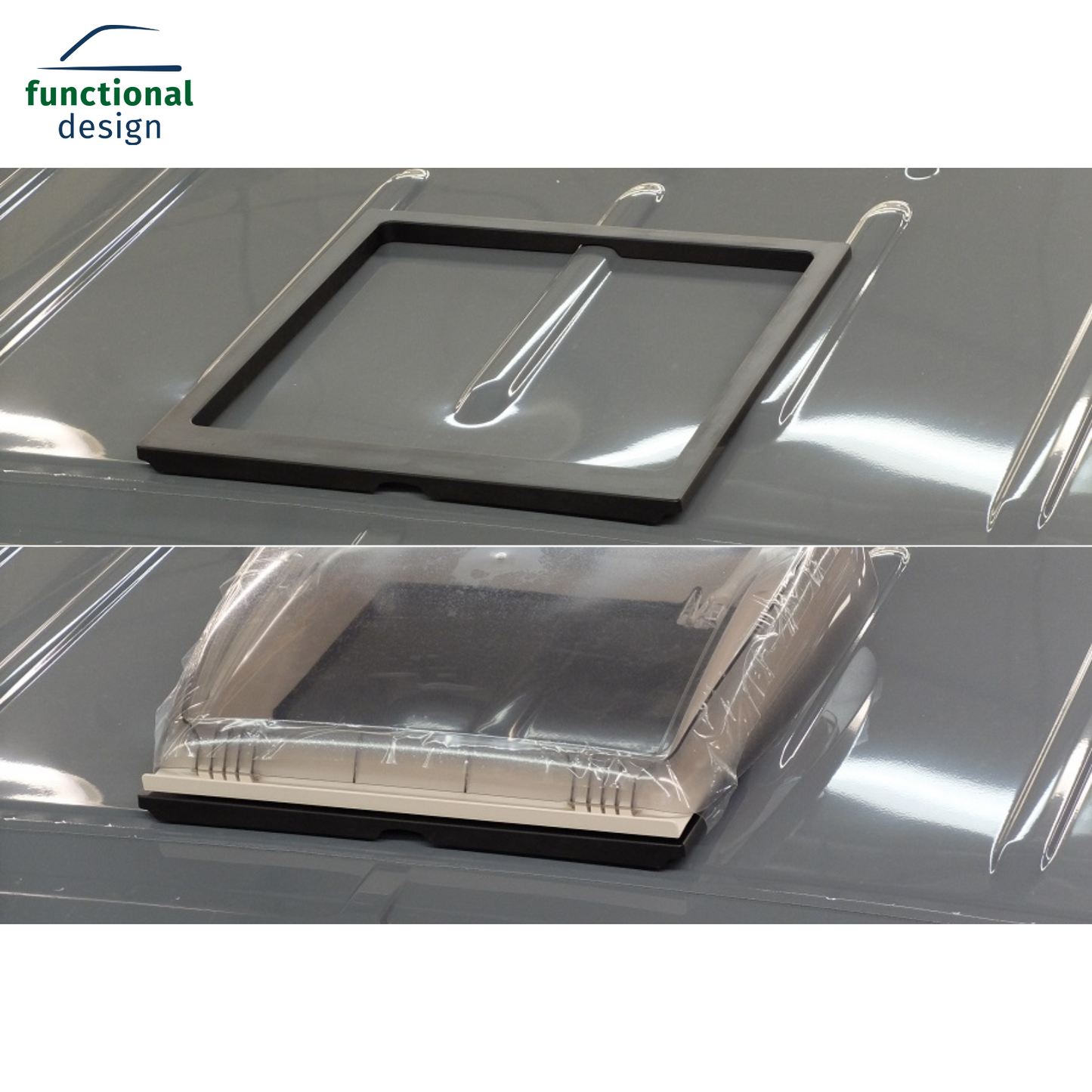

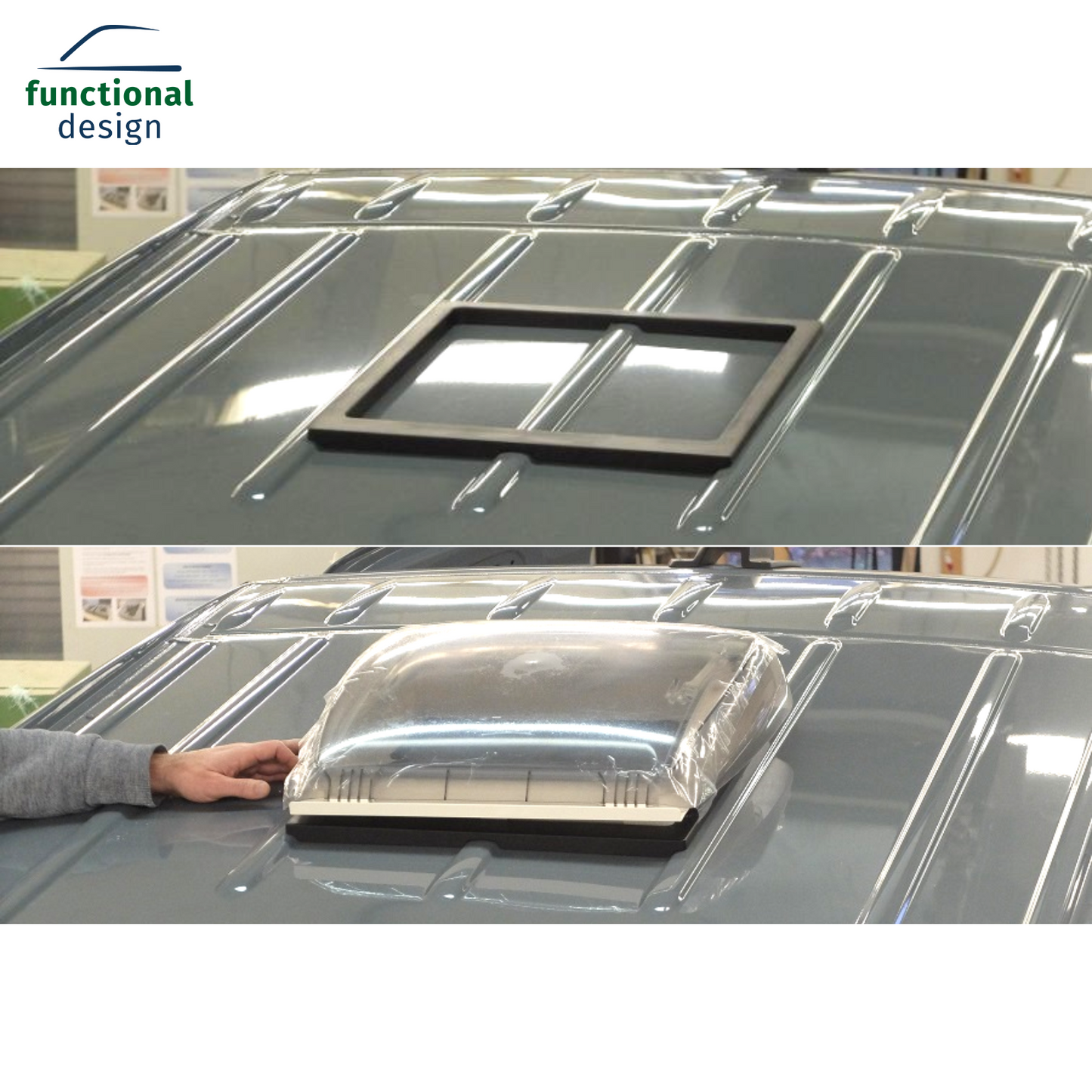

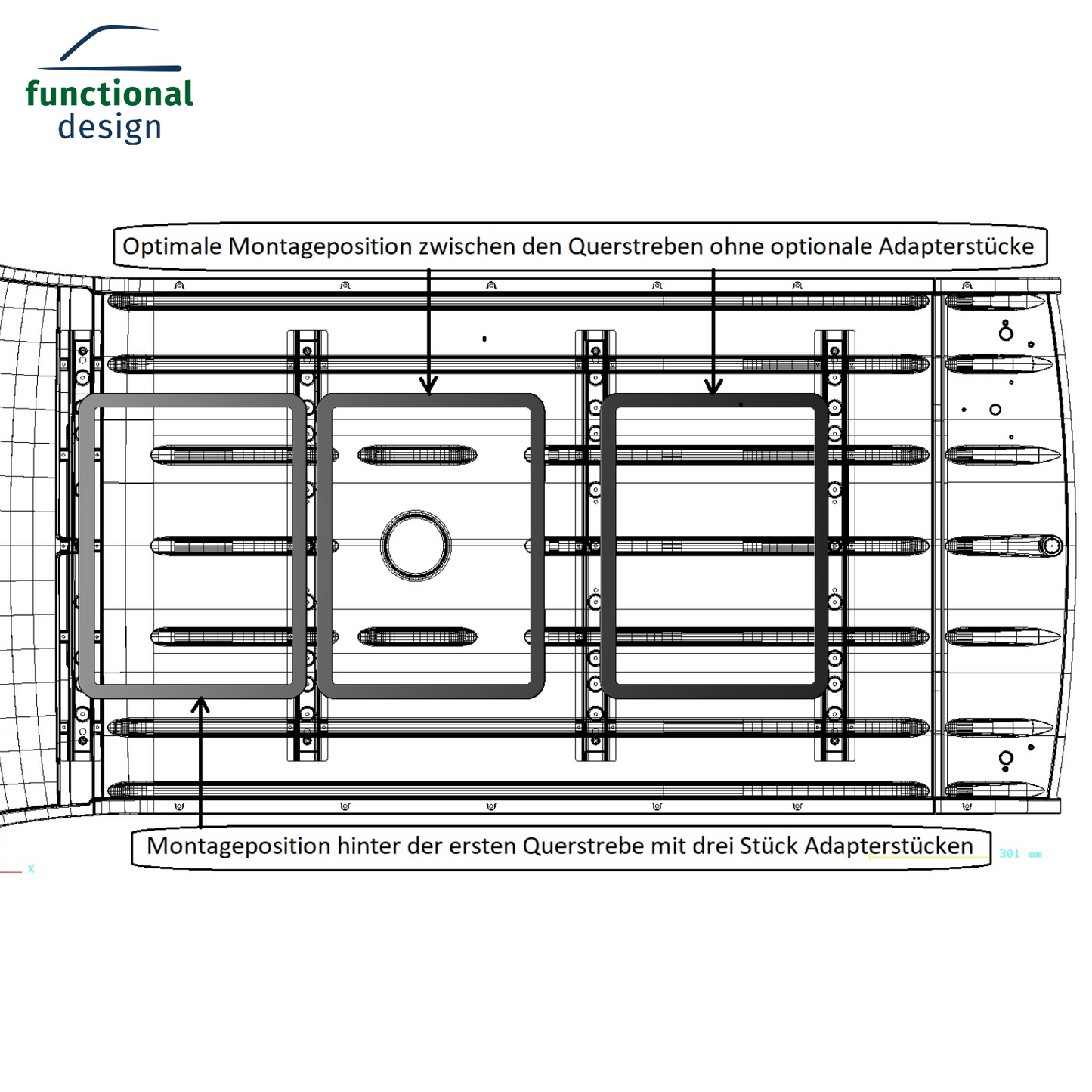

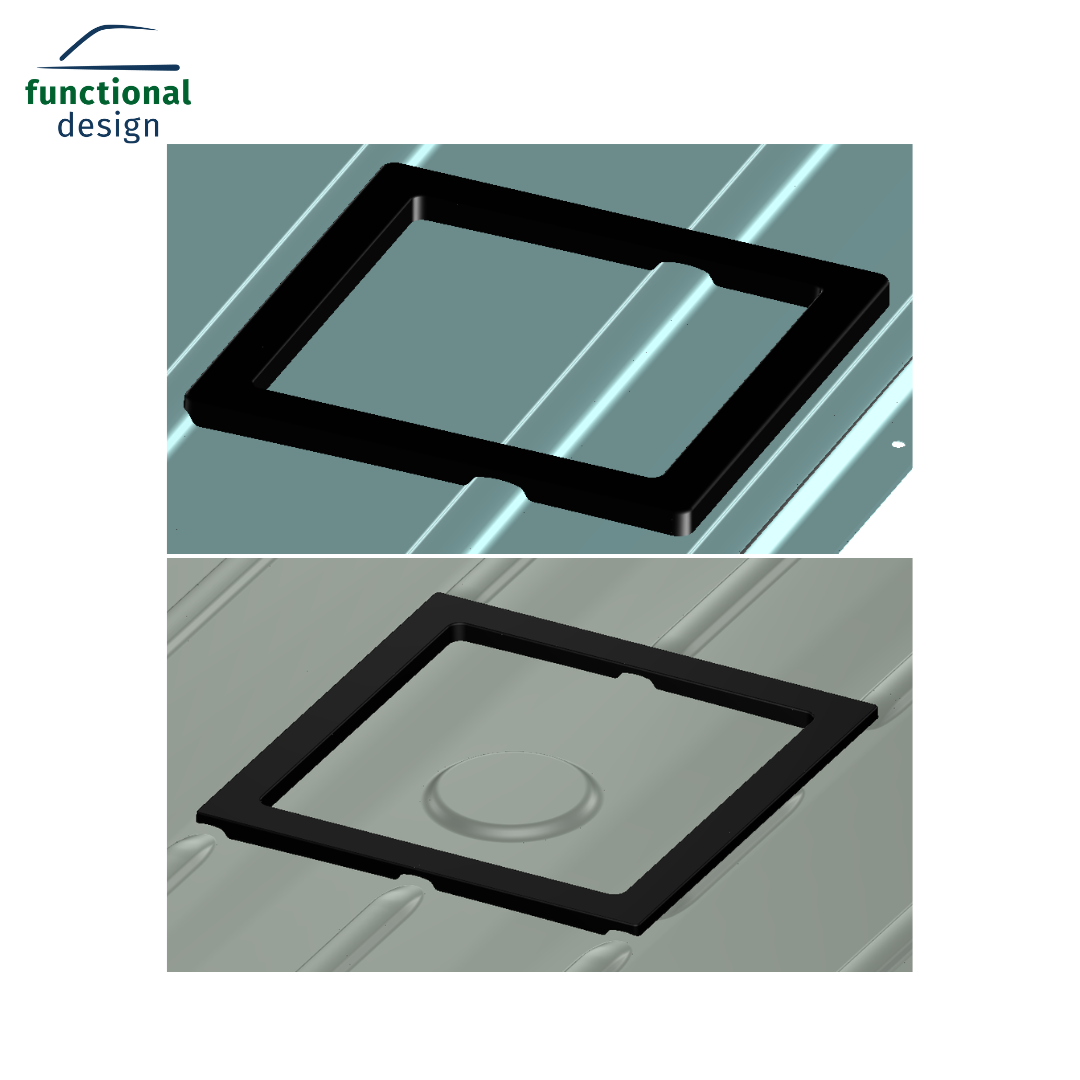

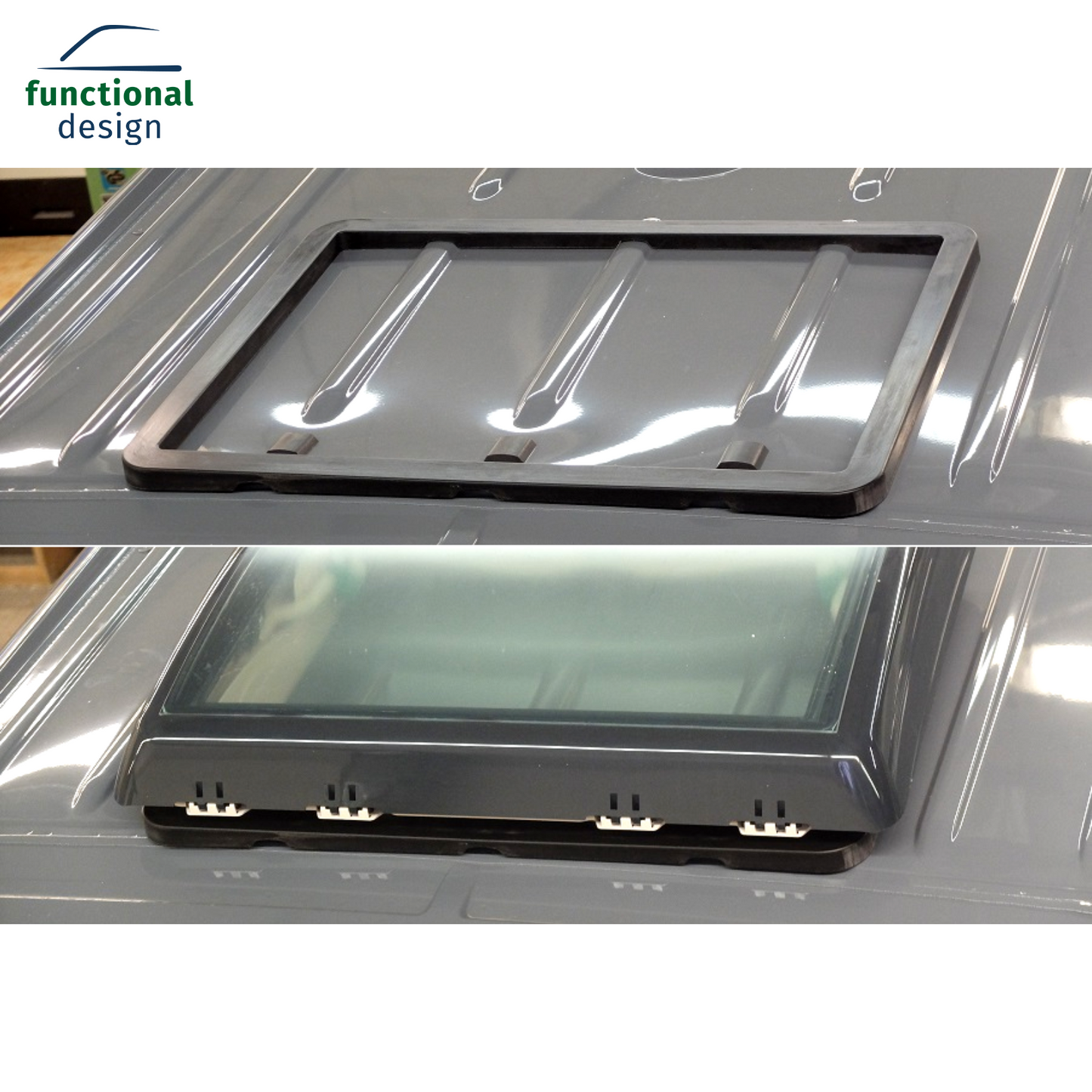

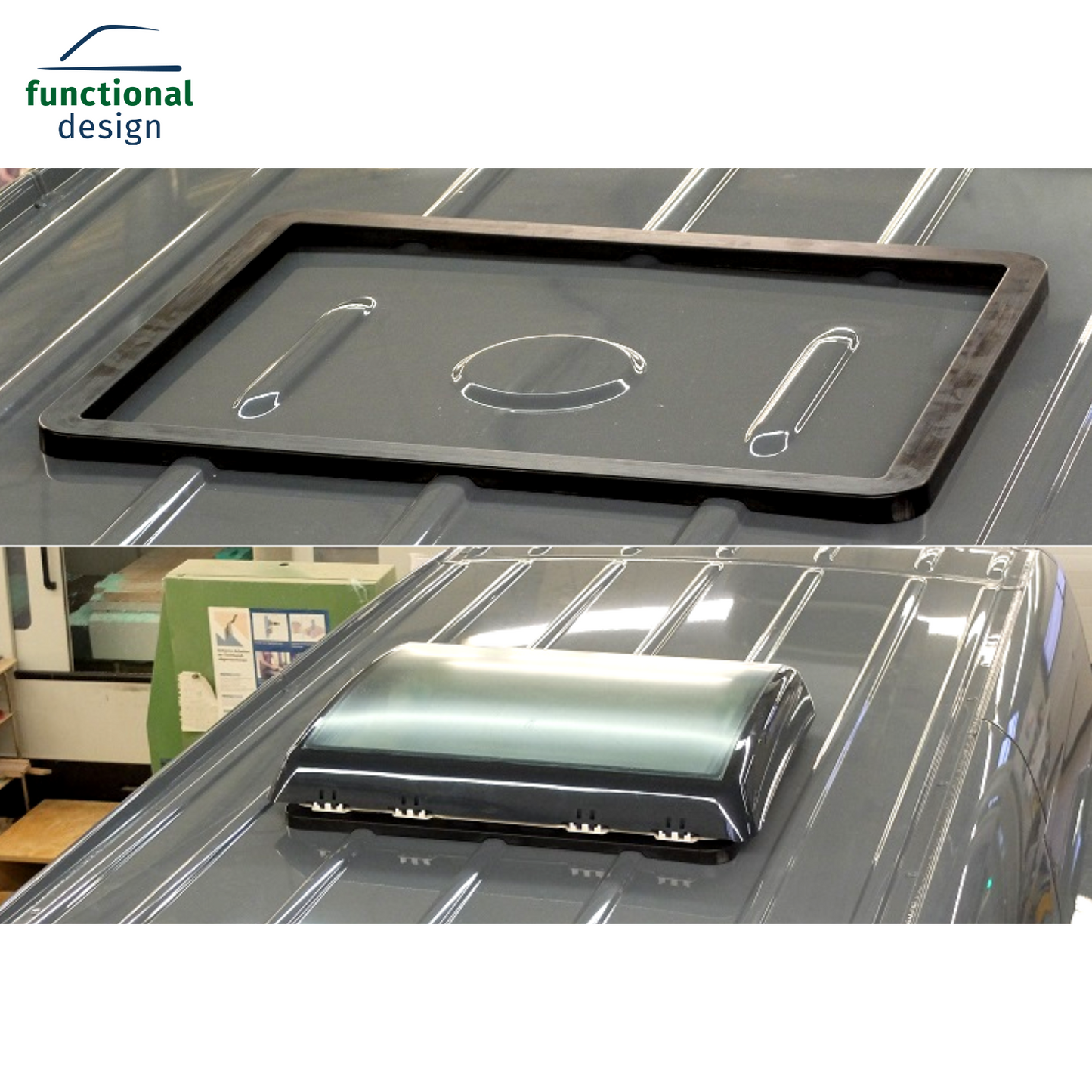

With this adapter frame you can mount your roof hood in any position along the length of the roof. It always balances the convex roof sheet with the struts.

This creates the basis for a stress-free and permanently tight installation of the roof hood.

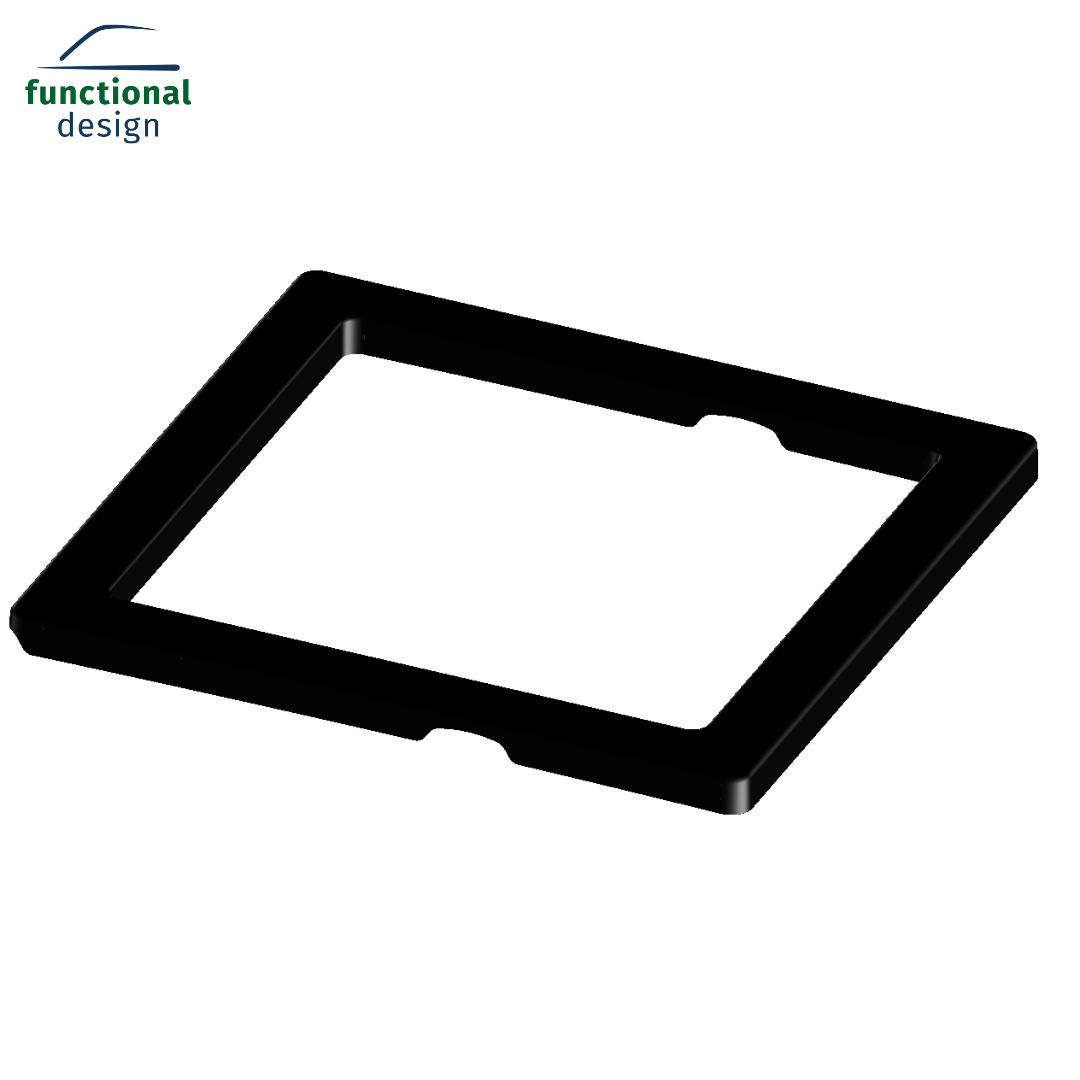

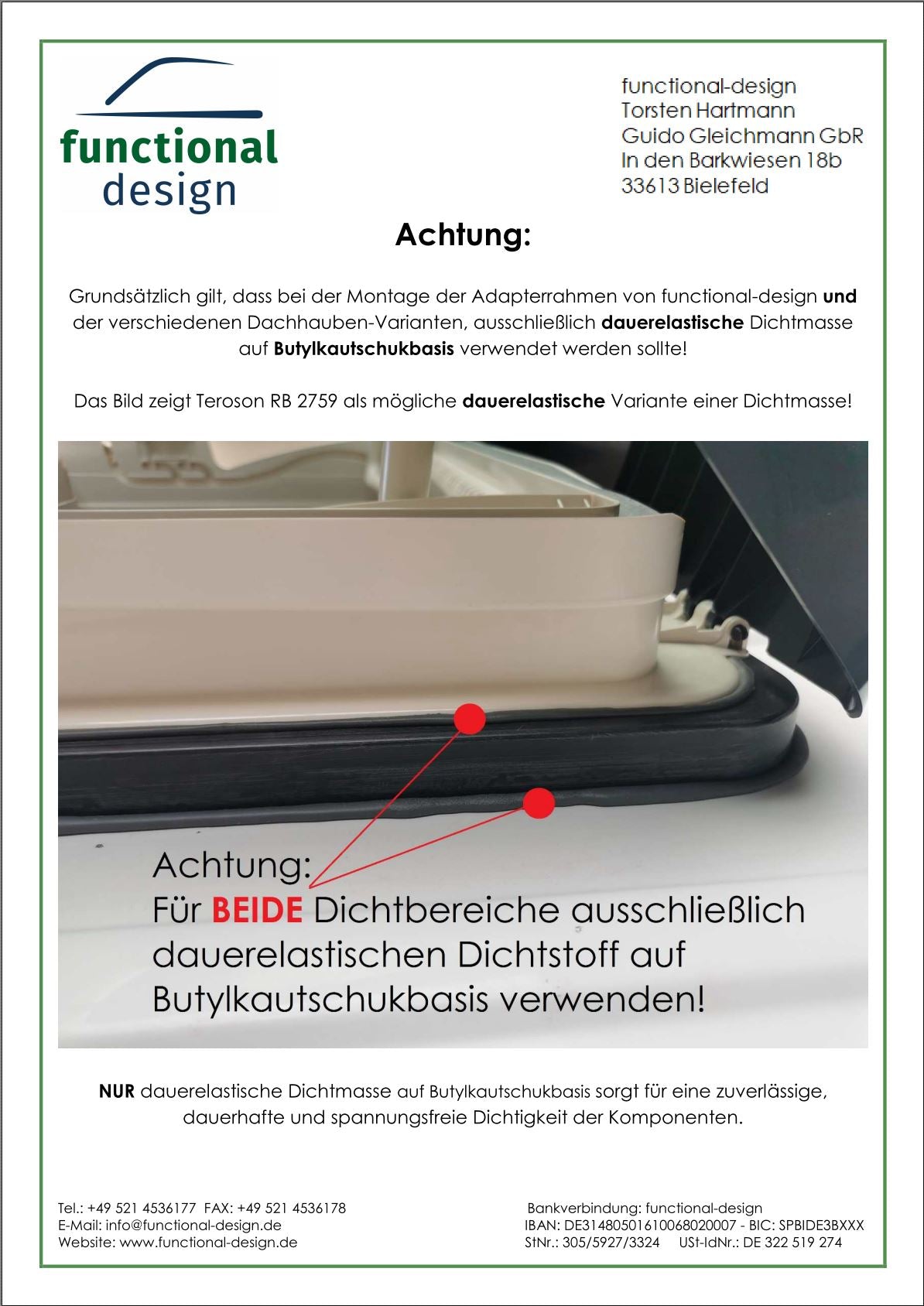

It is a black, dimensionally stable, one-piece PU cast frame with a surrounding butyl reservoir (we only recommend the use of butyl rubber sealant).

We offer different variants for different roof hoods (also in a package with butyl rubber sealant):

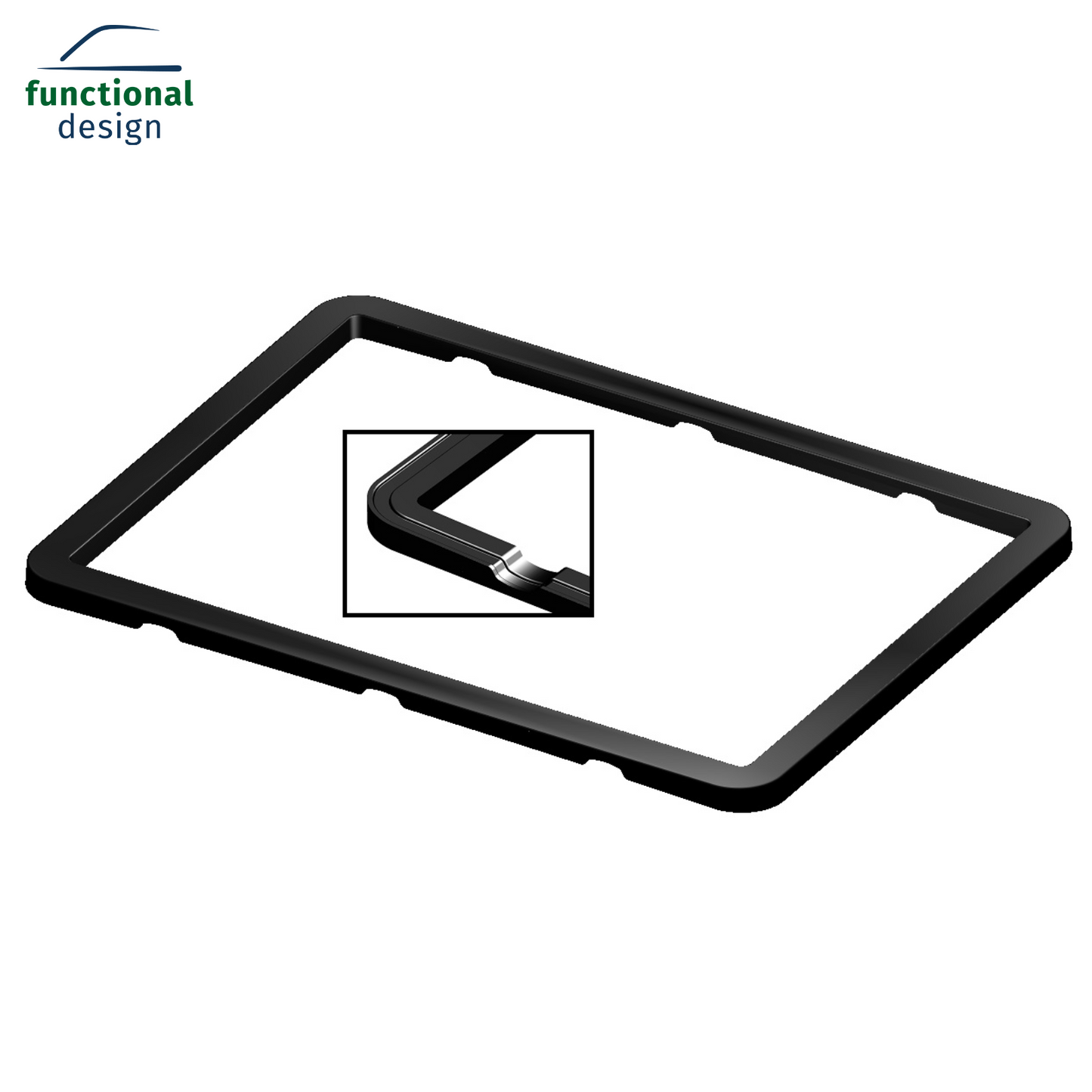

- Adapter frame 1292: 700 x 500 mm for the Midi-Heki and Midi-Heki Style roof light
- Adapter frame 1295: 400 x 400 mm for the Mini-Heki roof hood

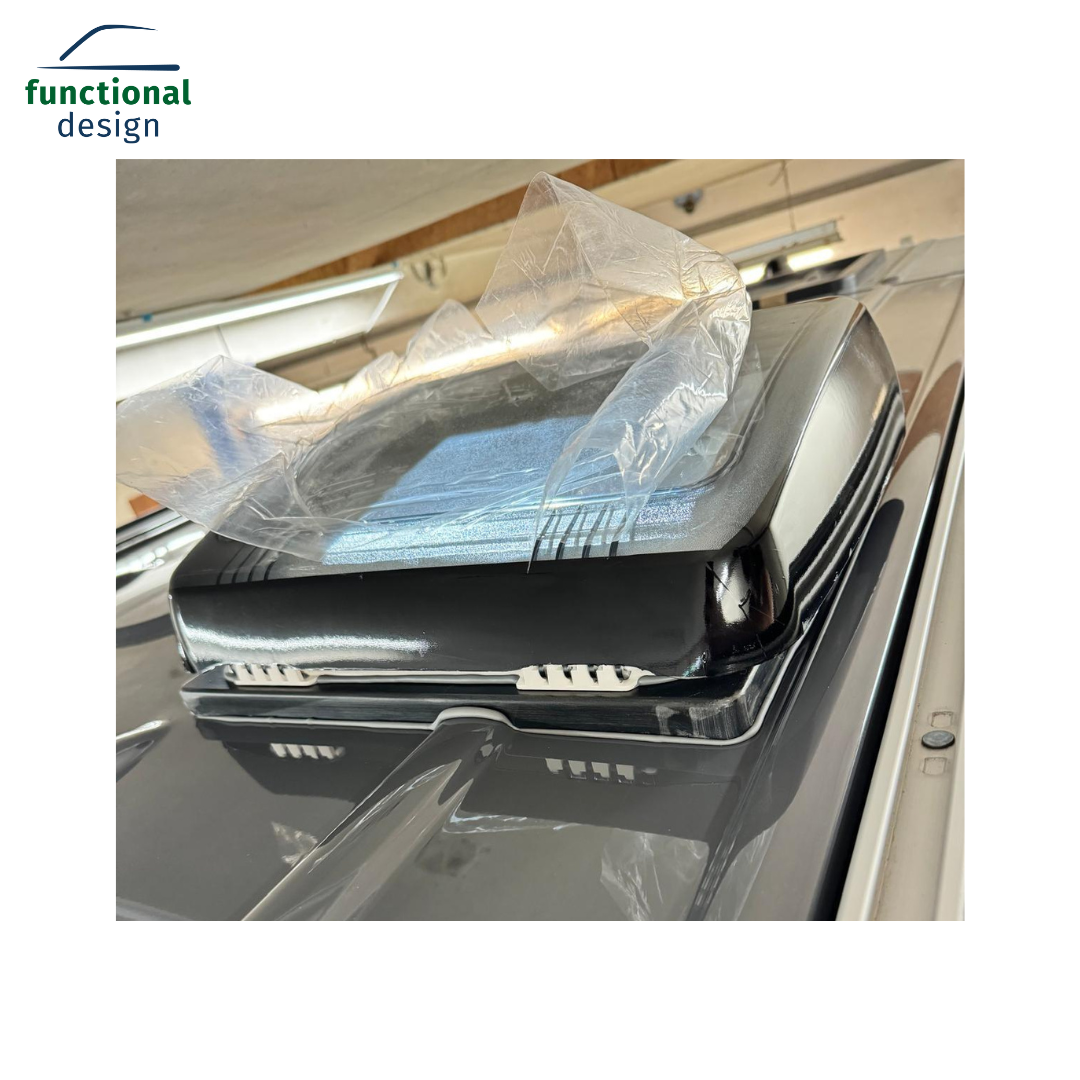

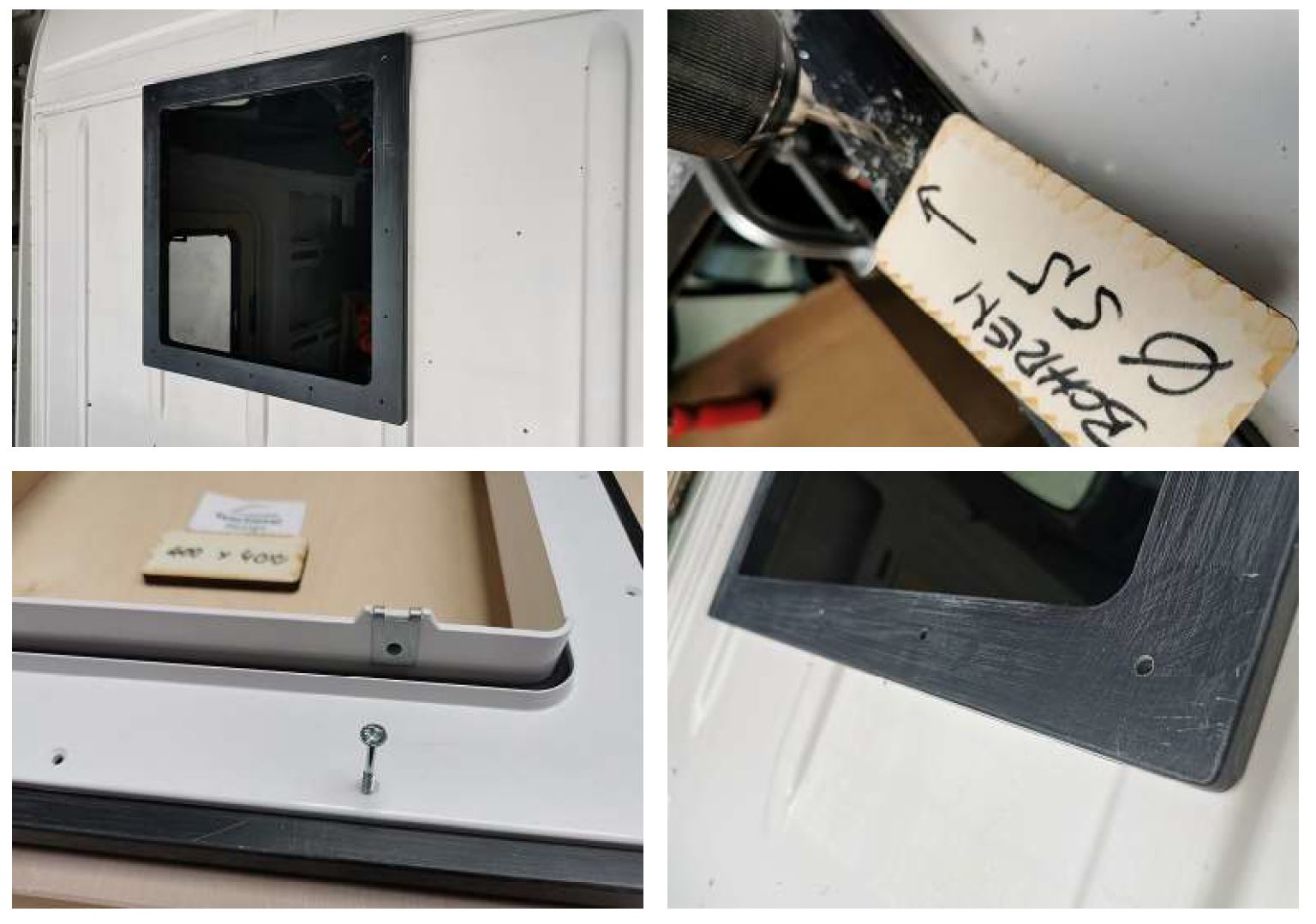

- Adapter frame 1296: 400 x 400 mm for roof hoods from Maxxfan, Carbest, Fiamma, among others
